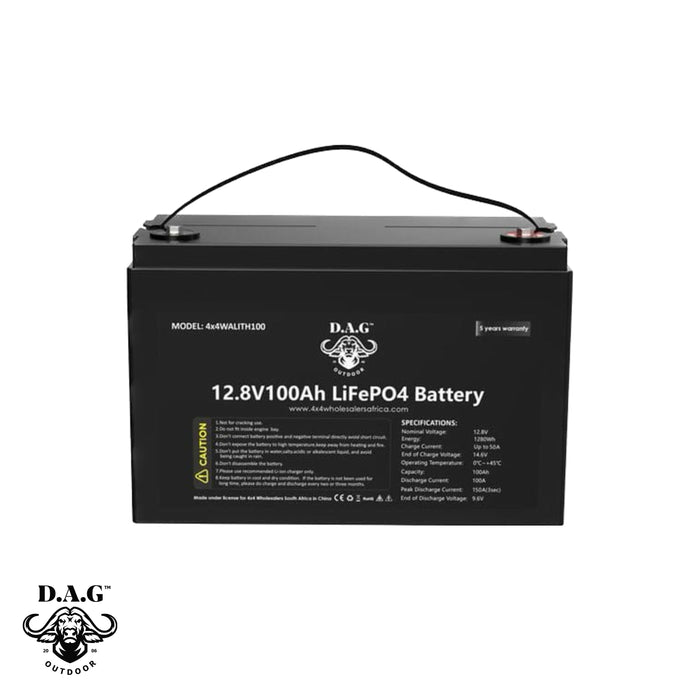

D.A.G | 12.8V Lithium Battery 100Ah

 D.A.G | 12.8V Lithium Battery 100Ah

Experience the power and longevity of the D.A.G 12.8V Lithium Battery 100Ah. With its high capacity and long lifespan, this battery is perfect for powering your devices and equipment. Say goodbye to frequent replacements and hello to reliable energy.

Nominal Voltage
Nominal Capacity 100Ah
Stored Energy 1280wh
Self Discharge < 3% per month
Energy Efficiency > 98%
Cycles 3000+
Interior Structure
Configuration 4S2P 4S1P
Cell Assembly High Quality 3.2V LiFePO4 Cell
Cycle Life 6000 times (Cycle @RT, 1C rate,85% DOD)
Built-in BMS Built-in 100A BMS

Charge Specifications
Continuous Charge Current 50A
Maximum Charge Current 100A
Charge Cut-off Voltage 14.6V
Charge Mode CC/CV : Constant Current / Constant Voltage

Discharge Specifications
Continuous Discharge Current 100A
Maximum Discharge Current 150A(5S)
Discharge Cut-off Voltage 9.2V
Temperature Specifications

Charge Temperature 0°C to + 50°C
Discharge Temperature -10°C to + 55°C
Storage Temperature -10 °C to + 45°C @60±25% relative humidity

Mechanical Specifications
Terminal Type M8
Case Material ABS Box
IP Rating IP65
Dimensions 329*172*214mm
Weight 11.2Kg
Packing 1 pc in one carton

Warranty: 5 Years (in order to be covered for this warranty you would need to register your purchase at this link 4X4 Wholesalers Africa)

Part Number: 4x4WALITH100
