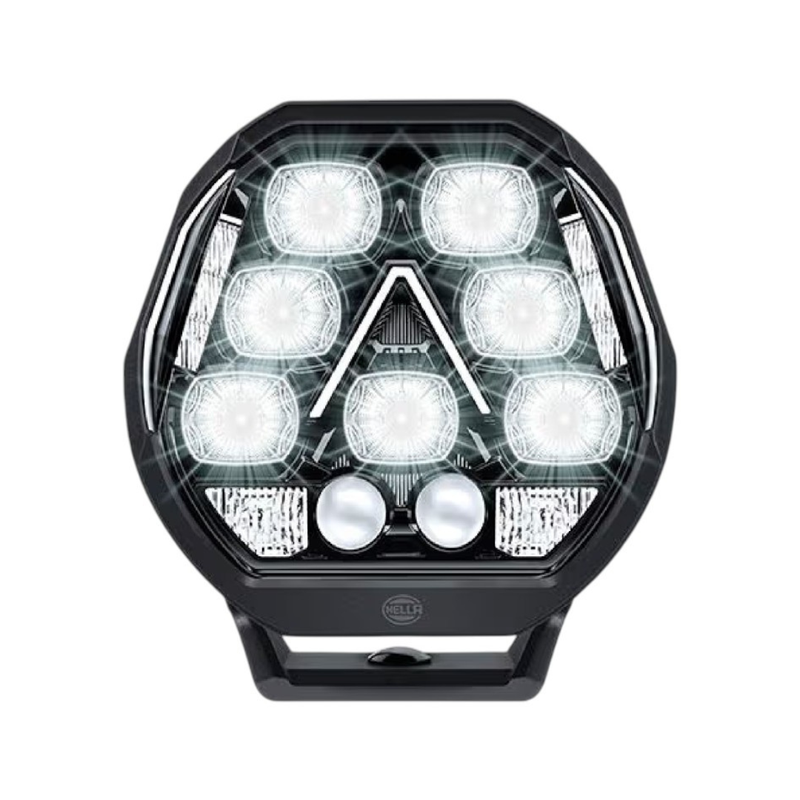

Hella 7" Antares Spotlight Set
Why This Product Stands Out
💡 Compact Powerhouse – Ideal for smaller vehicles or tight mounting spaces without compromising performance.

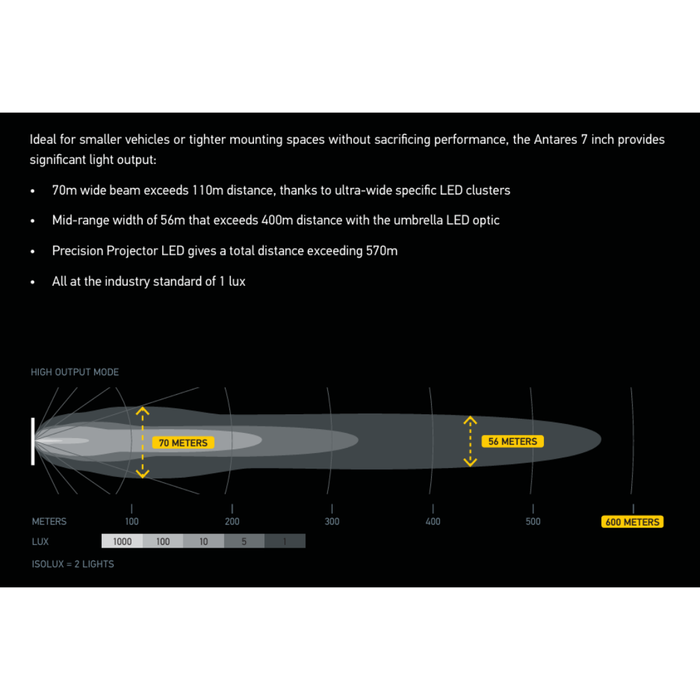

🌌 Exceptional Beam Distance – Achieves a total range of 570m+ at 1LUX with a 70m beam width.
⚙️ Dual Optic Technology – Ultra-wide LED clusters for 110m near-field coverage and mid-range umbrella optics extending beyond 400m.
🛠️ Rugged Construction – IP67 & IP69K rated diecast aluminium housing with UV-stable polycarbonate lens.
⚡ Versatile Performance – Runs on 10–30V DC and suitable for both 12V and 24V systems.
Product Details
The Antares 7-inch LED Driving Light delivers powerful illumination in a compact form — perfect for vehicles where space is limited but performance is non-negotiable. Designed for serious 4x4 enthusiasts, these lights offer a wide, intense beam pattern and advanced cooling for maximum reliability on and off the road. With IP69K waterproofing and precision LED optics, the Antares 7” stands out as a durable, high-performance lighting upgrade.
✅ 1 LUX at 570 m total distance with a 70 m beam width.
✅ 41 high-output LEDs producing up to 13 000 lumens.
✅ 160 W output with 5 700 K colour temperature.
✅ ADR, ECE, and RoHS certified for road compliance.
⏳ 5–7 working days manufacturing time if not in stock.

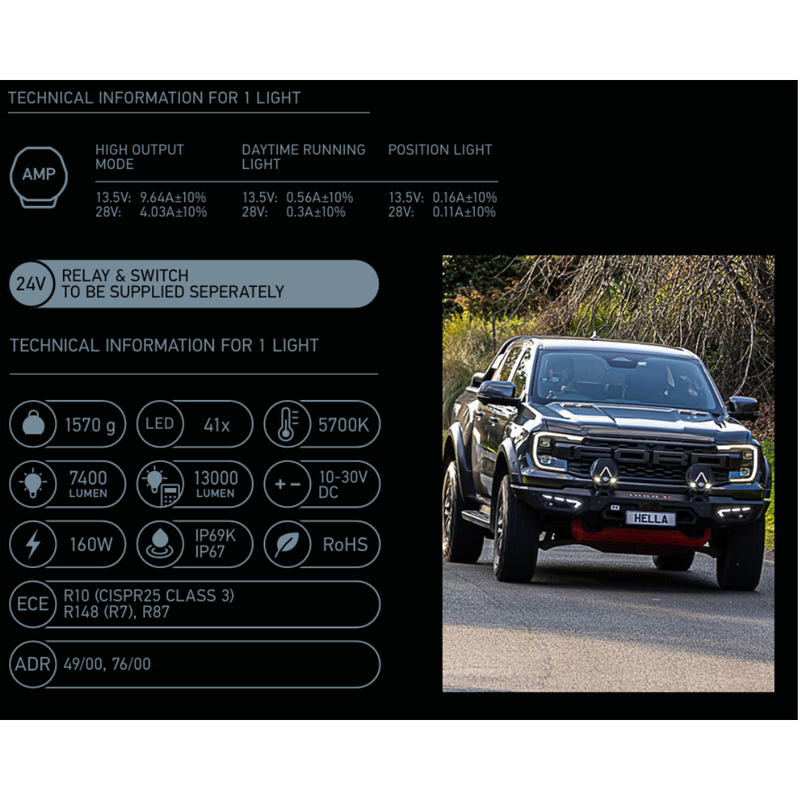

Specifications
| Feature | Details |
|---|---|
| Compatibility | Universal 4×4 & Off-Road Vehicles |
| Light Type | 7-inch LED Driving Light |
| LED Configuration | 41 × High-Output LEDs |
| Lumens | 7 400 lm (low) / 13 000 lm (high) |
| Colour Temperature | 5 700 K |
| Power | 160 W |
| Voltage | 10–30 V DC (12 V & 24 V compatible) |
| Protection Rating | IP67 / IP69K |
| Housing Material | Diecast Aluminium + Polycarbonate Lens |
| Weight | 1 570 g per light |
| Certifications | ADR 49/00 & 76/00, ECE R10 (R148, R87), RoHS Compliant |
| Beam Distance | 1 LUX at 570 m (total), 70 m beam width |
| Lead Time | 5–7 Working Days if not in stock |
What’s Included

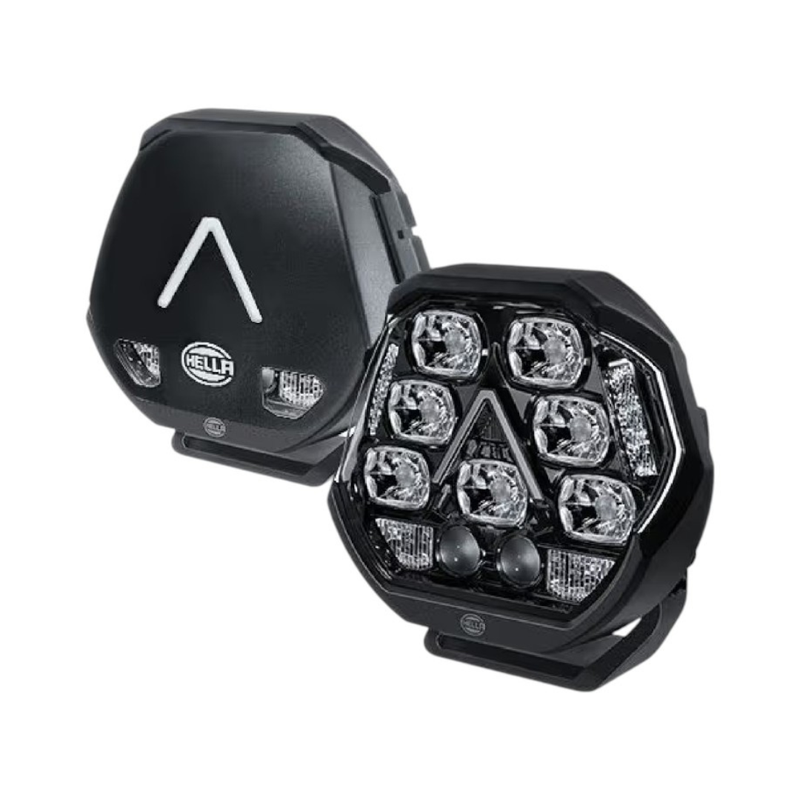

2 × Antares 7” LED Driving Lights
Mounting hardware & bolts
Wiring harness (required relay & switch supplied separately)
Protective covers
Installation manual
✔️ Compact size. ✔️ Massive performance. ✔️ Engineered for adventure.
